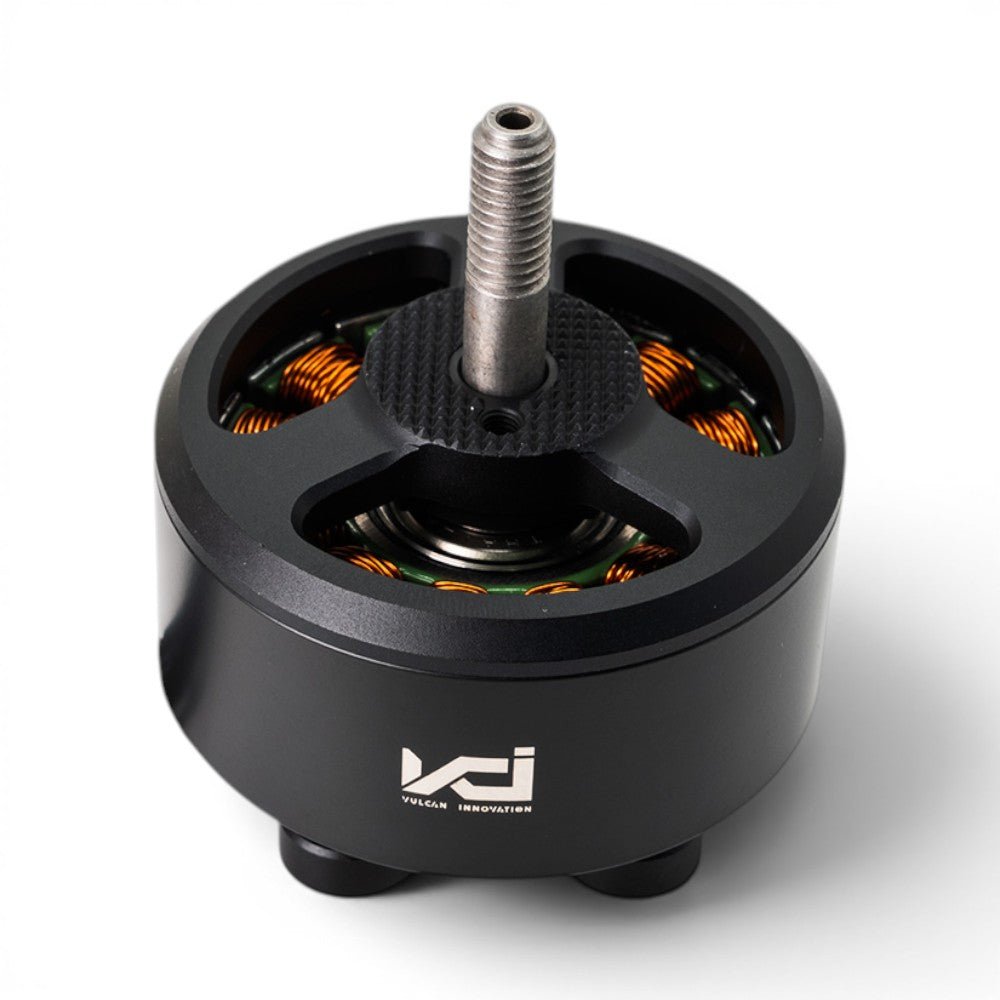

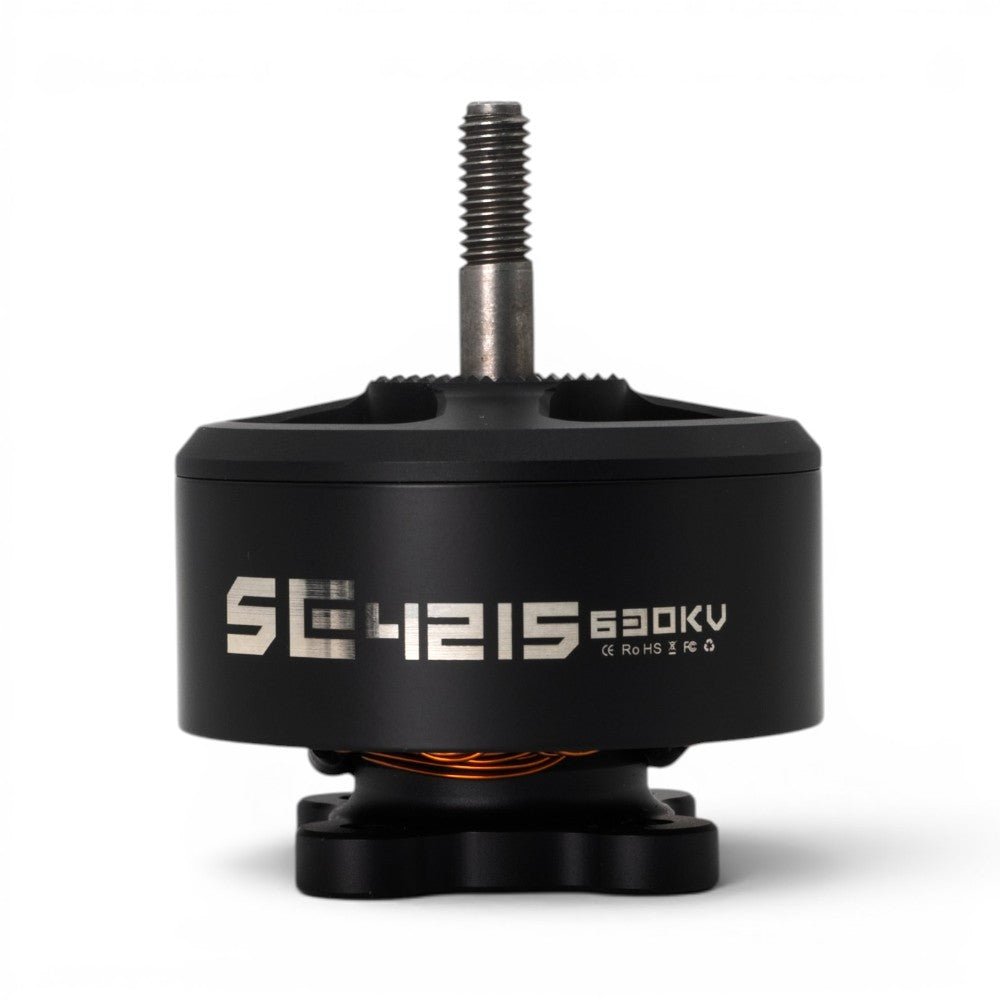

The VCI SE 4215 630KV is a high-power brushless motor designed for professional heavy-lift UAV platforms and industrial multirotor applications. Featuring a large Ø42*15mm stator architecture, the motor delivers high torque, stable power output, and efficient operation under sustained load conditions.

Designed for demanding payload-oriented applications, the SE 4215 is suitable for inspection drones, mapping systems, tethered UAVs, logistics platforms, and other heavy-lift multirotor systems requiring reliable thrust performance and efficient 6S operation.

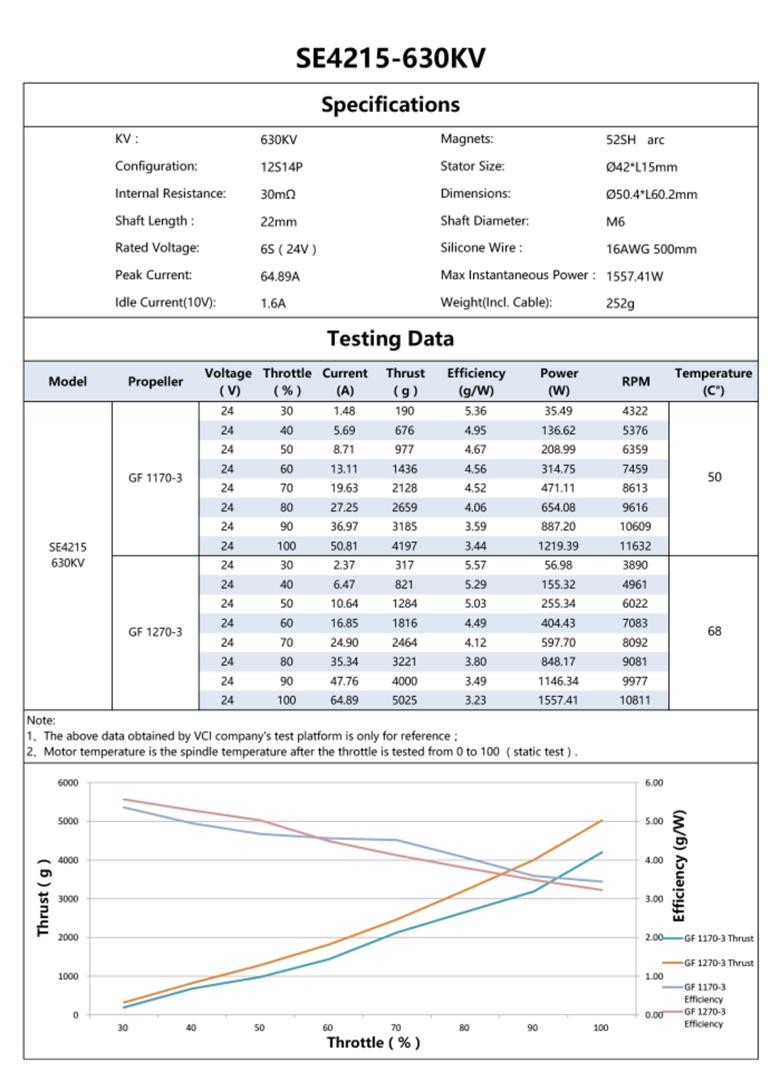

During static testing with GF 1270-3 propellers, the motor achieved up to 5025g thrust and 1557W peak output, making it suitable for medium and heavy-lift drone platforms.

Specifications

Brand: VCI (Vulcan Innovation)

KV: 630KV

Configuration: 12S14P

Internal Resistance: 30mΩ

Shaft Length: 22mm

Rated Voltage: 6S (24V)

Peak Current: 64.89A

Idle Current (10V): 1.6A

Magnets: 52SH Arc

Stator Size: Ø42*L15mm

Dimensions: Ø50.4*L60.2mm

Shaft Diameter: M6

Silicone Wire: 16AWG 500mm

Max Instantaneous Power: 1557.41W

Mounting Pattern: 30*30 φ4mm

Weight (Including Cable): 252g
