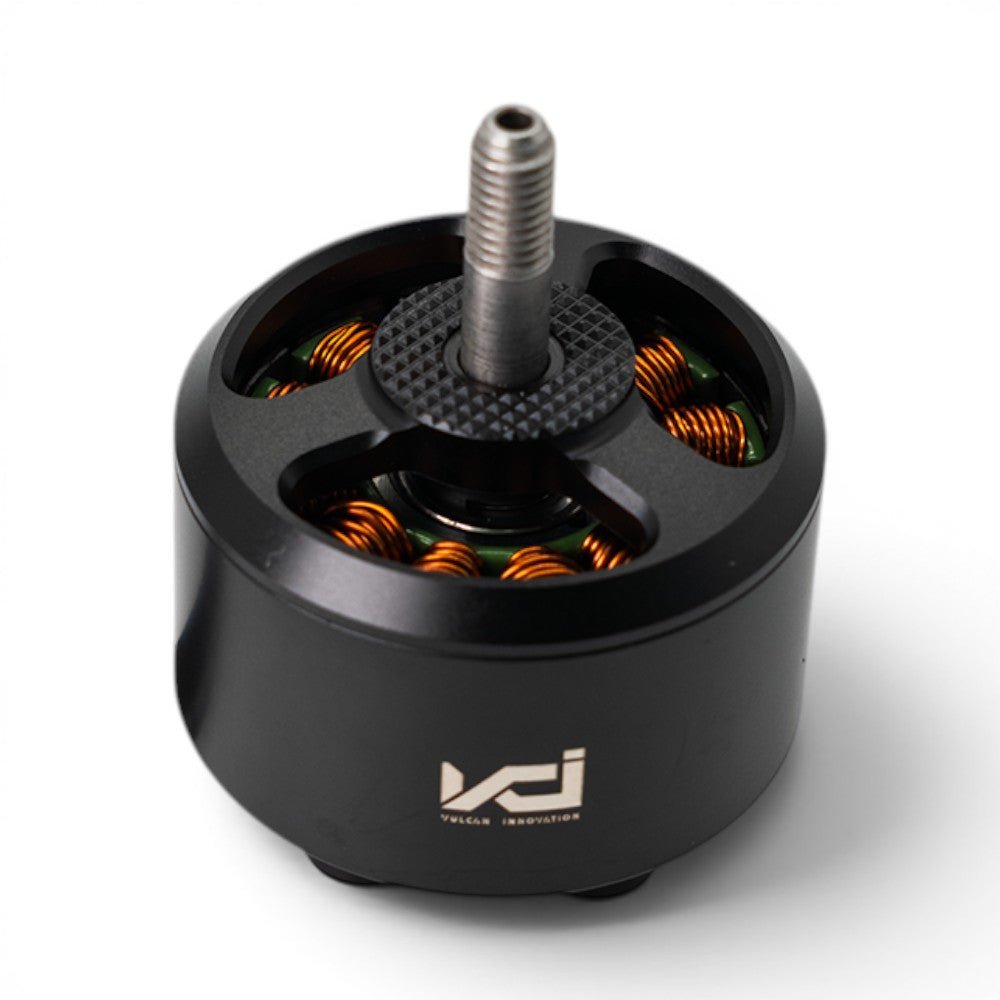

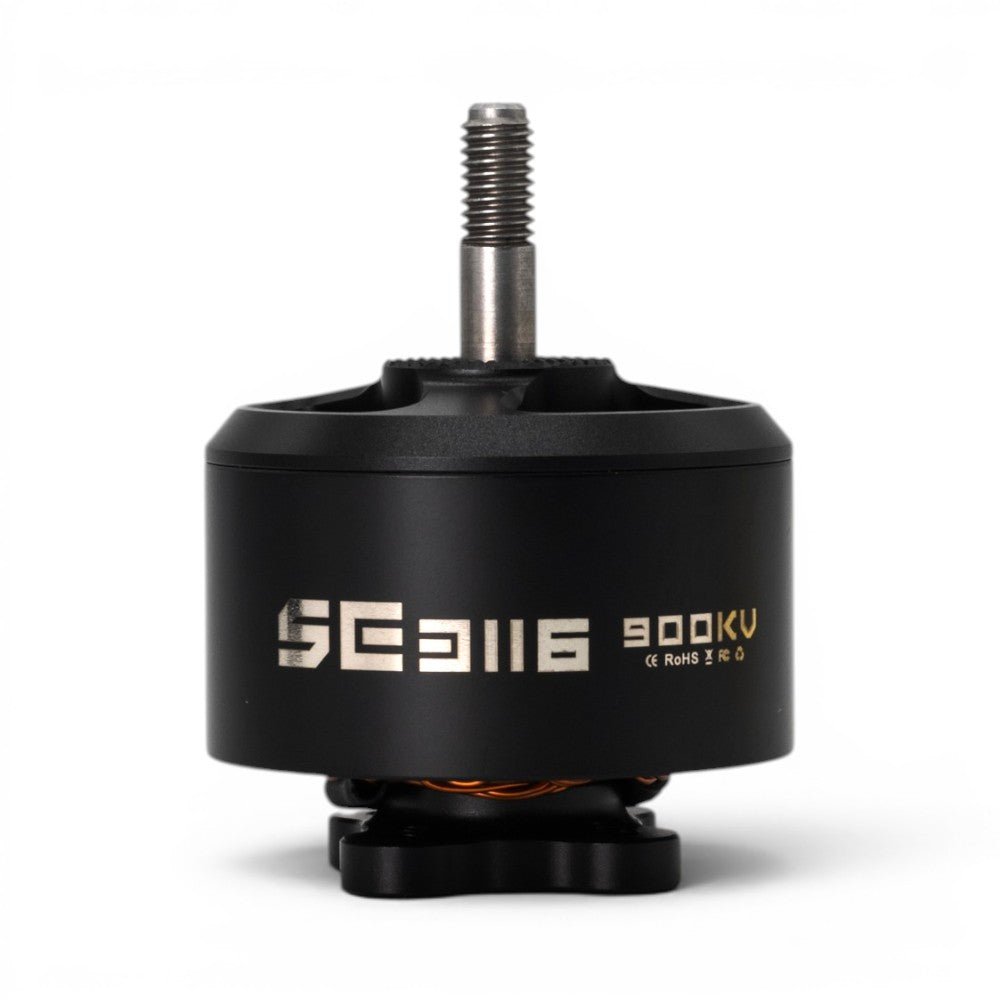

The VCI SE 3116 900KV is a high-power brushless motor designed for professional heavy-lift UAV platforms and industrial multirotor applications. Featuring a Ø31*16mm stator architecture, the motor delivers high torque, stable power output, and efficient operation under sustained load conditions.

Designed for demanding payload-oriented applications, the SE 3116 is suitable for inspection drones, mapping systems, tethered UAVs, logistics platforms, and other heavy-lift multirotor systems requiring reliable thrust performance and efficient 6S operation.

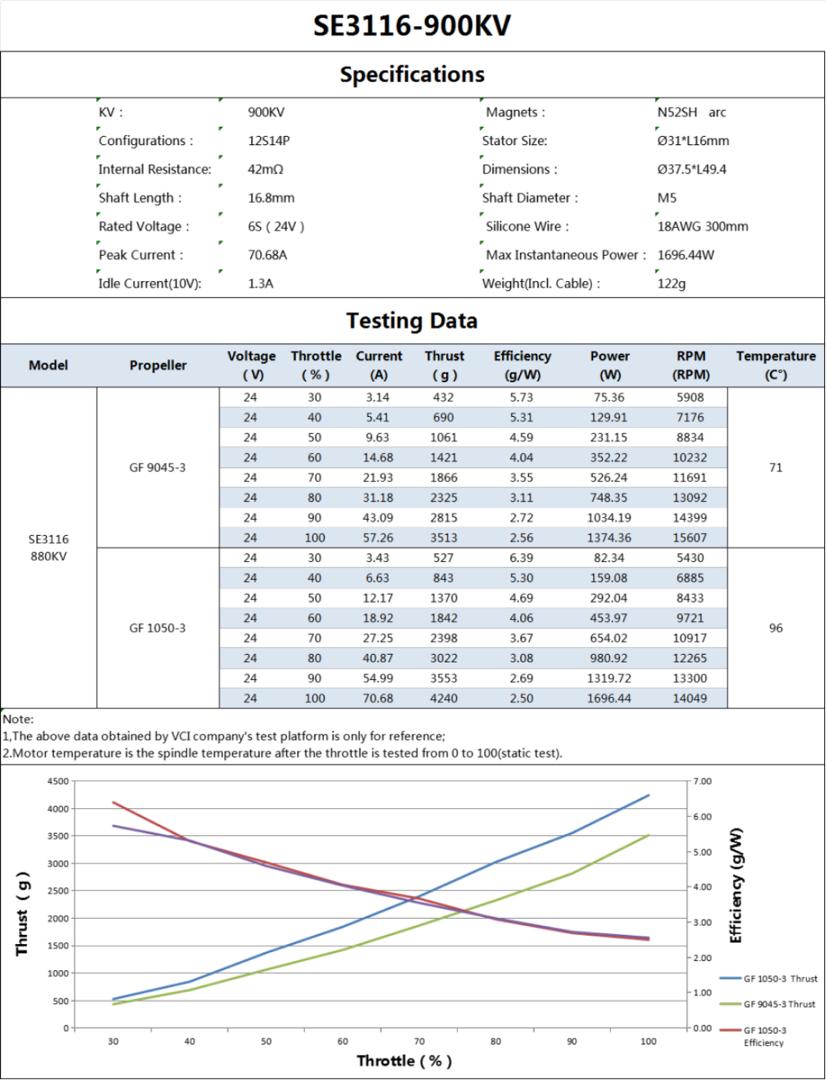

During static testing with GF 1050-3 propellers, the motor achieved up to 4240g thrust and 1696W peak output, making it suitable for medium and heavy-lift drone platforms.

Specifications

Brand: VCI (Vulcan Innovation)

KV: 900KV

Configurations: 12S14P

Internal Resistance: 42mΩ

Shaft Length: 16.8mm

Rated Voltage: 6S (24V)

Peak Current: 70.68A

Idle Current (10V): 1.3A

Magnets: N52SH Arc

Stator Size: Ø31*L16mm

Dimensions: Ø37.5*L49.4

Shaft Diameter: M5

Silicone Wire: 18AWG 300mm

Max Instantaneous Power: 1696.44W

Mounting Pattern: 19*19 φ3mm

Weight (Including Cable): 122g
